Aeon Canada manufacturing facility

A 106,500 sq ft single-storey manufacturing building at the south edge of London, Ontario: 290 tonnes of structural steel and 86 tonnes of joist and deck, fabricated in our Strathroy shop. Steel erection in 2026.

Application
Manufacturing
Location
London, Ontario
Steel erection
2026
Size
106,500 sq ft
A high aerial view of a large steel building frame on a concrete slab, with an L-shaped area of silver roof deck already laid and green fields around the site.
Roof deck going on, September 2026.
  • Looking up through a grid of steel columns and open-web roof joists against a deep blue sky, with boom lifts working among the columns.
    Under the joist field, October 2026.

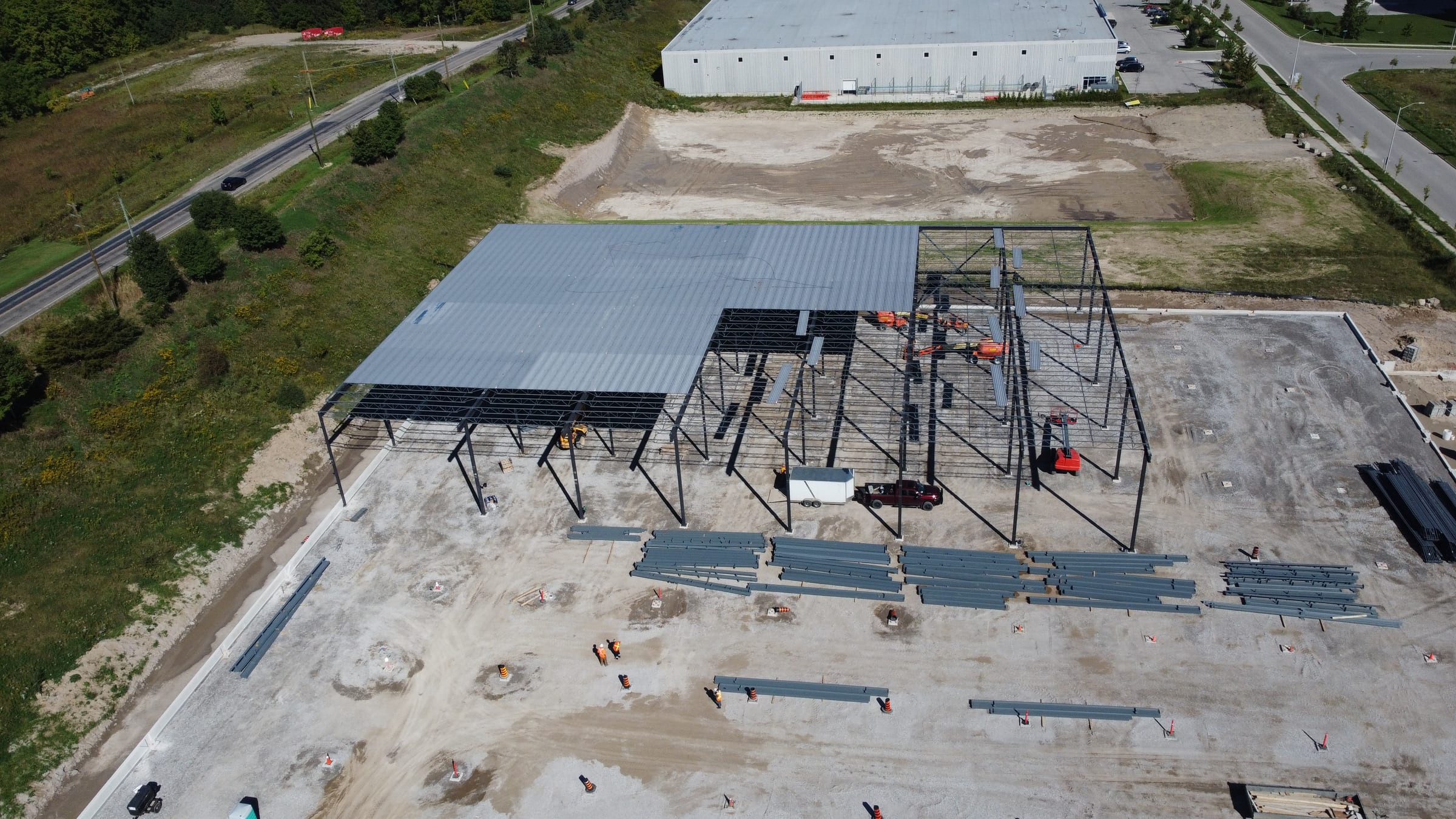

  • An aerial view of the steel frame from the other side: decked bays at the top, open frame bays below and steel members laid out in rows on the slab.
    Frame and deck progress from the air, September 2026.

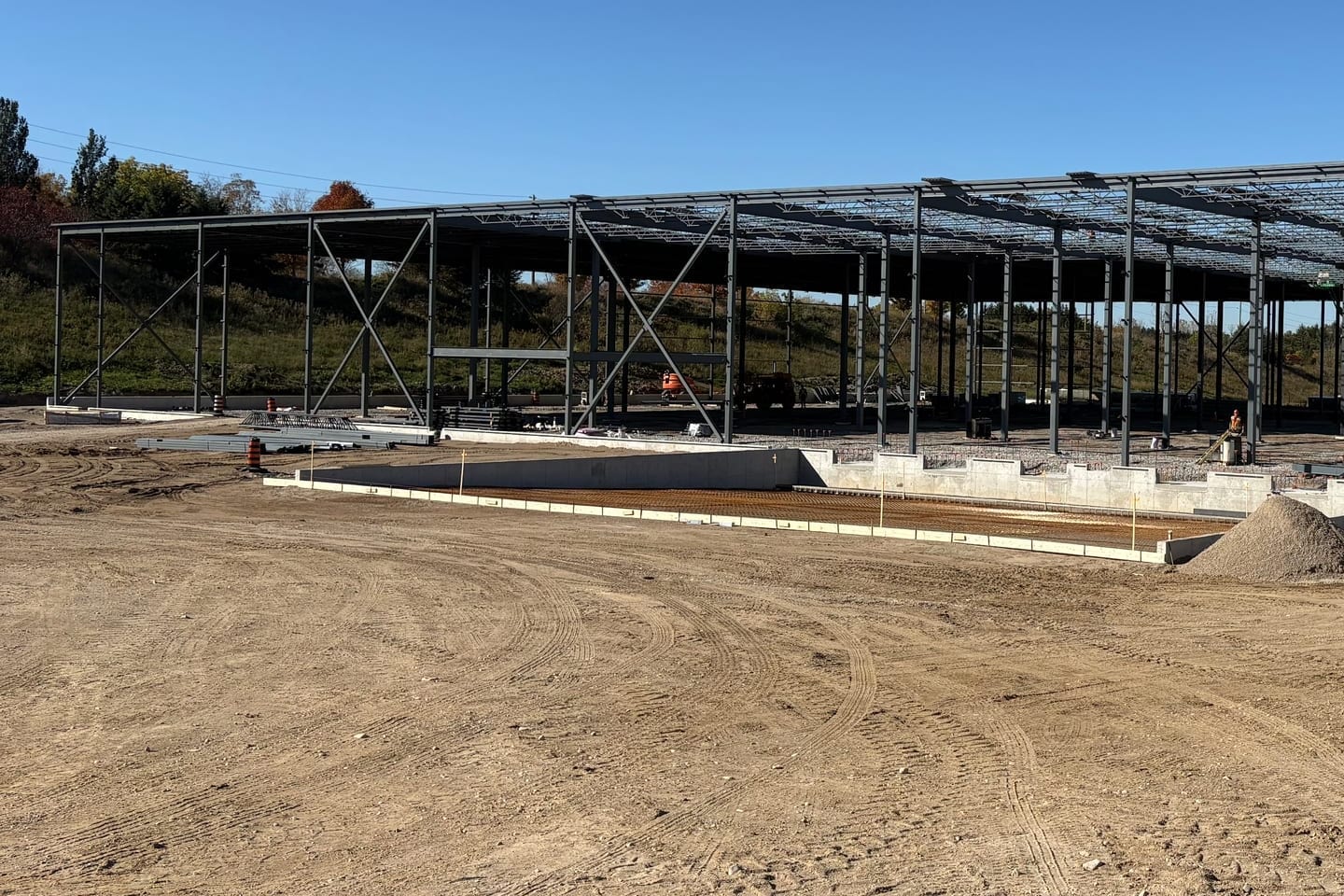

  • The long side of the braced steel frame across a graded site, with roof joists along the top and a concrete foundation wall in the foreground.
    The long elevation of the frame, October 2026.

A 106,500 sq ft manufacturing facility at the south edge of London, Ontario: a large single-storey production building with a two-storey office front.

The frame is a grid of wide-flange steel columns and beams carrying open-web steel joists and roof deck, braced with X-bracing. The job took 290 tonnes of structural steel and 86 tonnes of joist and deck, all fabricated in our Strathroy shop.

By September 2026 part of the roof was decked while the rest of the frame went up around it; the photos from October 2026 show the full joist field in place.

Specifications

Structural steel
290 tonnes
Joist and deck
86 tonnes
Structure
Wide-flange columns and beams, open-web steel joists, roof deck, X-bracing
Steel erection
2026
